Our Valve Products

In Industrial Systems, piping is one of the most important system & valves are considered to be one of the most critical components of a piping system, which restricts, stops or controls flow of fluids through the system.

Smooth operation in flow & control of fluids require ultimate care in selection process for a right type of valve, right type of material.

Team Power Flow, with the virtue of years of professional experience in industrial valves and an efficient supply chain of Stockists & manufacturers of valves in the network, is serving industrial sector with vast range of valves produced by the reputed valve manufacturers from around the globe.

From Project requirements to the urgent O&M requirements, Power Flow serves the requirements of her clients with quality products in valves, actuators & actuation products like limit switches, positioners, solenoids etc.

Power Flow supplies reliable valve spare parts for a large range of valves & process control systems, manufactured as per the OEM designs or the samples provided.

Valve Product Range

Forged Valves

Product Details

Types:Gate, Globe, and Check
Classes: 150# to 600#
Size:2” and Above
Size Range:¼” to 2”
End Connections:SW / NPT / RF / BW
Body Material: Carbon Steel, Alloy Steel & Stainless Steel (from Low temperatures to moderate & High Temperatures)
Trim:As per API 600
Design Features:Low emission design



Gate Valves with flexible wedge, OS&Y

Extended stem for Gate & Globe (Optional)

Check valves with optional swing or plug disc

Operation: Manual (lever / Gear) or Actuated

Cast Valves





Types:

Gate, Globe, Check, Integral Flanged, Below Sealed, Extended Body Gate & Cryogenic Valves

Design Standards:

ASME B16.34, API 602

Pressure class:

150 to 2500

Size Range:

¼” to 2”

End Connections:

NPT, SW, RTJ, RF, BW

Body Material:

All low temperature & high temperature forged grades, especially Stainless Steels, duplex, super duplex, Alloy Steels with Cr, Mo, Ni & other exotic grades.



Trim:

As per API 600

Design Features:

Port type &nd…

Pressure Seal Valves

Product Details

Types:Gate, Globe, and Check
Class:Upto 2500# (4500# in few sizes)
Size:150 to 2500
Size Range:2” to 36”
End Connections:RF / RTJ / BW
Testing:As per API 598, BS 6755
Body Material:Carbon steel (moderate to low temperature), Stainless steel & Alloy Steel (Including Cro-Moly & Alloy 20 & High Nickel Alloys).
Operation:Manual (lever / Gear) or Actuated
Trim:As per API 600
Design Features (ANSI B16.34):Low Emission design



Gate valve…

Get Quoteor
Talk To Us

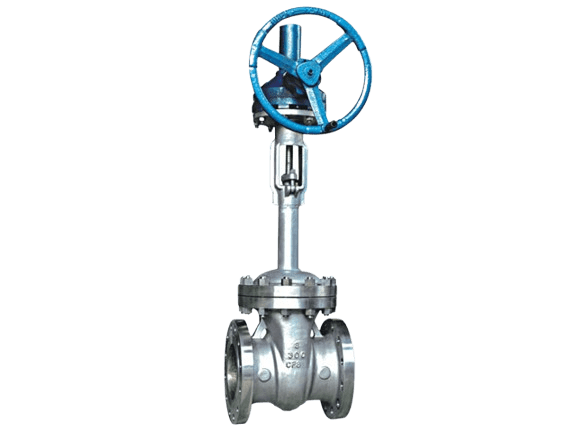

Cryogenic Valves

Product Details

Types:Gate and Check; Globe valve on request
Design:Construction: API 6D
Class:150# to 2500#
Size Range:2” 1/16″ to 4″ 1/16
Classes:2000 to 10,000 Psi
End Connections:SW, NPT, Flanged
Design Features:
  • Non rising stem
  • Loose fitted seats on gate valve only
  • Slab parallel disc or Expanding parallel disc with spring
  • Metal to metal body bonnet seal
  • Soft or metal-to-metal seats design (Optional)

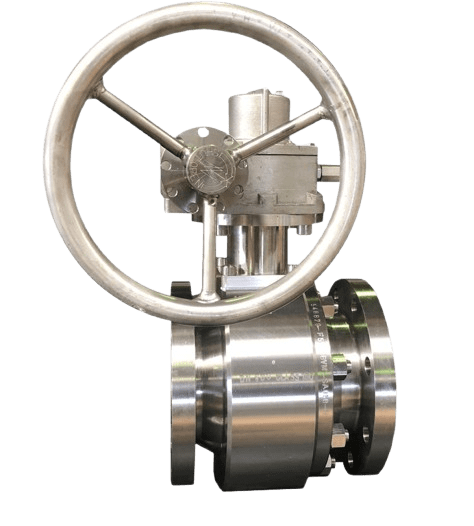

API 6D Valves

Product Details

Types:Gate and Check; Globe valve on request
Design:Construction: API 6D
Class:150# to 2500#
Size Range:2” 1/16″ to 4″ 1/16
Classes:2000 to 10,000 Psi
End Connections:SW, NPT, Flanged
Design Features:
  • Non rising stem
  • Loose fitted seats on gate valve only
  • Slab parallel disc or Expanding parallel disc with spring
  • Metal to metal body bonnet seal
  • Soft or metal-to-metal seats design (Optional)

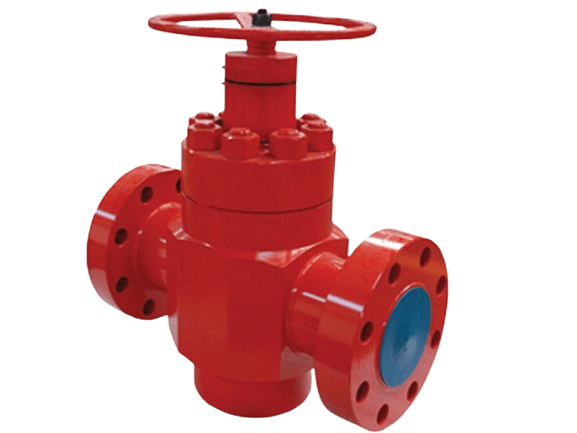

API 6A Valves

Product Details

Types:Gate and Check; Globe valve on request
Design:API 6A
Class:2000 to 10,000 Psi
Size Range:2” 1/16″ to 4″ 1/16
Classes:2000 to 10,000 Psi
End Connections:SW, NPT, Flanged
Design Features:
  • Non rising stem
  • Loose fitted seats on gate valve only
  • Slab parallel disc or Expanding parallel disc with spring
  • Metal to metal body bonnet seal
  • Soft or metal-to-metal seats design according to customer (Optional)

Actuated / Motorized Valves

Description:Power Flow assists end-users in identifying & finding right actuators (both Pneumatic & electric) and supply the complete valve assembly with actuators & accessories.
Actuated Products Offered:
  • On-off Butterfly Valves
  • Pneumatically actuated Valves, single acting / double acting
  • Multi turn valves (pneumatic & motor)
  • Quarter Turn on-off Valves (Ball / Butterfly / Plug)

Spare Parts For Fluid Handling

Product Details

Services Offered
  • ·Power Flow, in coordination with partners’ network, supplies large range of genuine spare parts for fluid handling devices & processing equipment like different types of valves including control valves, actuators and pumps.

  • By the virtue of our partnerships with leading OEMs & sound knowledge of the industry enables Power Flow to offer wide range of genuine spare parts & an option for alternate / custom made spares.

  • Power Flow positioned herself as a reliable spare part supplier in critical times, especially for hard-to-find & obsolete models.
